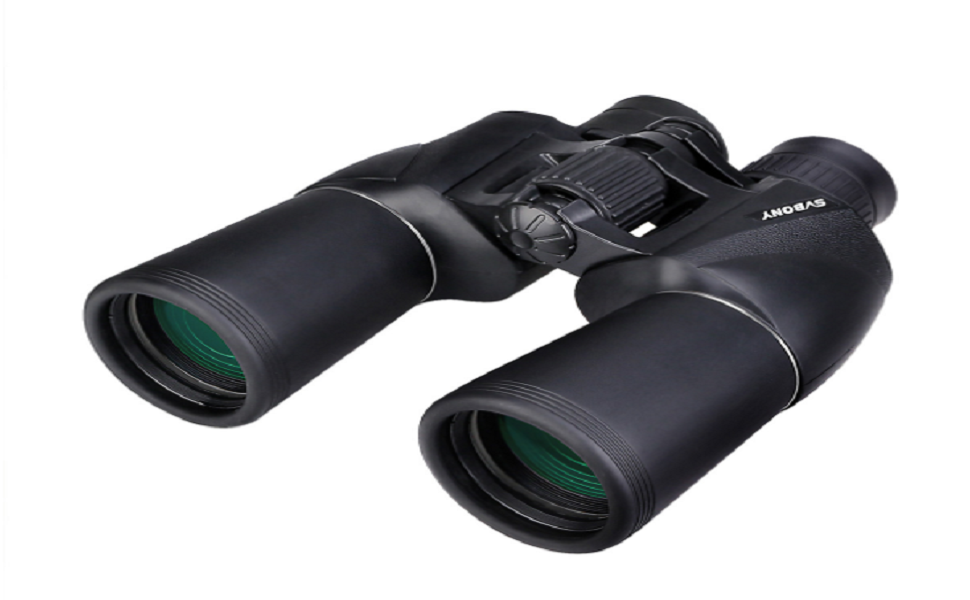

Basic Operation and Details of Using SV206 Binoculars
Basic Operation and Details of Using SV206 Binoculars
For the users who are first to choose to use the SV206 binoculars, follow these steps to get a clear image and viewing experience.
Step 1: Observe the foldable eye mask if wearing glasses, if not wearing glasses observation can be directly observed. According to the exit pupil distance that suits you, you can see that the field can be a circular field of view.
Step 2: Hold the binoculars with both hands and observe the distance more than 6 meters away object.

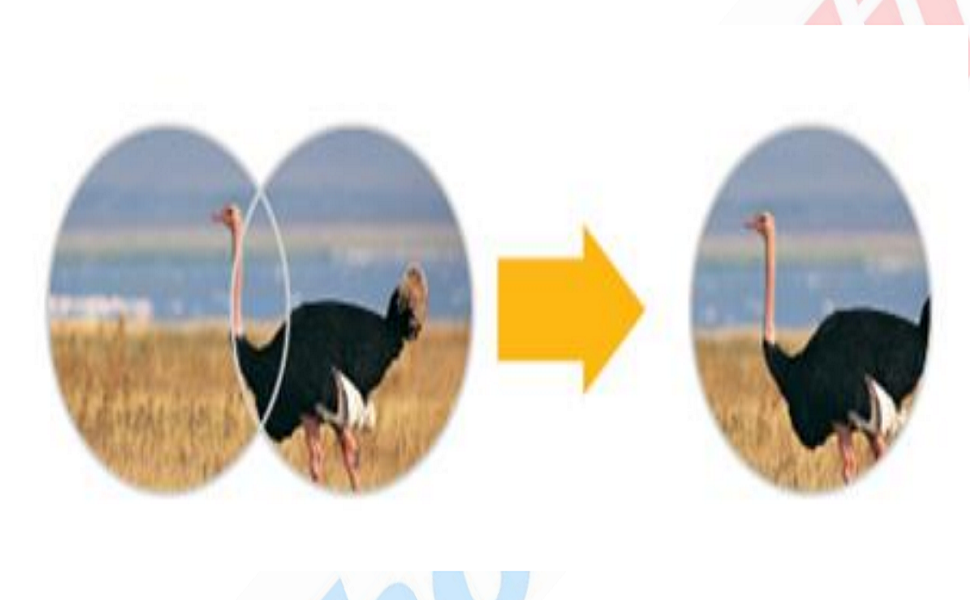

Step 3: Adjust the distance between the two lens barrels until the left and right fields of view overlap. up to a circular field of view.

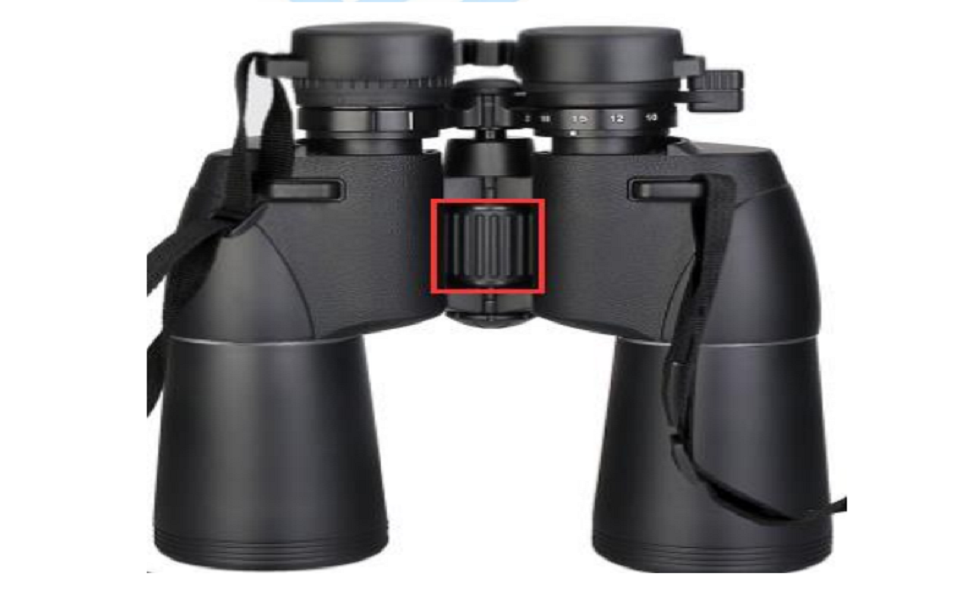

Step 4: Close the right eye, watch the left eye through the left eyepiece, and slowly adjust the
Adjust the center focus ring until the left eye sees the target.

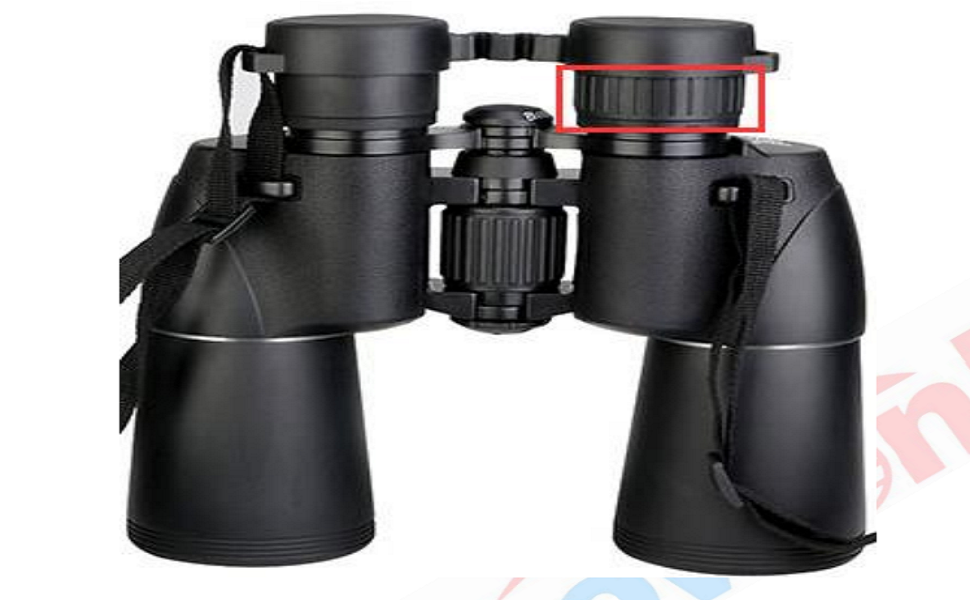

Step 5: Close the left eye, look through the right eyepiece with the right eye, and use the right eye
Observing the same target, turn the diopter compensation adjustment ring until the right eye observes
until a clear target.
Features of SV206 Binoculars：
1. SV206 Porro prism structure makes the optical effect is more prominent.
2. Fully multi-coated increases light transmission resulting in brighter and sharper images with high contrast levels.
3. It has a standard UNC 1/4-20 screw hole, and can support the tripod with the same screw.
4. Soft carrying case and streamlined diving fabric wide comfortable adjustable neck shoulder strap can help you carry the binocular everywhere.
